Online edge inference via auxiliary regression (Tier 0+)
This notebook demonstrates online function → function edge inference during GSNN training using MagnitudeEdgeRegressor.
Instead of a post-hoc correlation pass (MagnitudeEdgeInferer), we fit a shared (N, N) weight matrix W as an auxiliary linear regression: activation magnitudes at layer n−1 predict gradient magnitudes at layer n. Held-out edges are split into validation (early-stopping) and test sets.
Same converging-tier DAG setup as notebook 13, scaled to 12 inputs → 24 function nodes → 12 outputs with 16 held-out function-function edges.
[1]:
from matplotlib import pyplot as plt
import numpy as np
import networkx as nx
import torch
from gsnn.models.GSNN import GSNN
from gsnn.simulate.nx2pyg import nx2pyg
from gsnn.simulate.simulate import simulate
from gsnn.optim.MagnitudeEdgeInferer import MagnitudeEdgeInferer
from gsnn.optim.MagnitudeEdgeRegressor import MagnitudeEdgeRegressor
from sklearn.metrics import r2_score, roc_auc_score, roc_curve
torch.manual_seed(0)
np.random.seed(0)
device = 'cuda' if torch.cuda.is_available() else 'cpu'
%load_ext autoreload
%autoreload 2
Build ground-truth graph G*
Same converging-tier DAG as notebook 13 (scaled 4×). Held-out edges are removed when building G_partial; we try to recover them online during training.
[2]:
def build_convergence_graph(n_tier_a=6):
n = n_tier_a
G = nx.DiGraph()
func_func_edges_TRUE = []
input_nodes = [f'in{i}' for i in range(n)]
tier_a = [f'f{i}' for i in range(n)]
tier_b = [f'f{n + k}' for k in range(n - 1)]
tier_c = [f'f{2 * n - 1}']
function_nodes = tier_a + tier_b + tier_c
output_nodes = [f'o{k}' for k in range(n)]
for i, u in enumerate(input_nodes):
G.add_edge(u, tier_a[i])
for k in range(n - 1):
b = tier_b[k]
for parent in (tier_a[k], tier_a[k + 1]):
e = (parent, b)
G.add_edge(*e)
func_func_edges_TRUE.append(e)
sink = tier_c[0]
for b in tier_b:
e = (b, sink)
G.add_edge(*e)
func_func_edges_TRUE.append(e)
for k, b in enumerate(tier_b):
G.add_edge(b, output_nodes[k])
G.add_edge(sink, output_nodes[n - 1])
pos = {}
x_spread = max(n - 1, 1)
for i, u in enumerate(input_nodes):
pos[u] = (i * 2 * x_spread / max(n - 1, 1) - x_spread, 4.0)
for i, f in enumerate(tier_a):
pos[f] = (i * 2 * x_spread / max(n - 1, 1) - x_spread, 3.0)
for k, f in enumerate(tier_b):
pos[f] = ((k + 0.5) * 2 * x_spread / max(n - 2, 1) - x_spread, 2.0)
pos[sink] = (0.0, 1.0)
for k, o in enumerate(output_nodes):
pos[o] = (k * 2 * x_spread / max(n - 1, 1) - x_spread, 0.0)
return G, pos, input_nodes, function_nodes, output_nodes, func_func_edges_TRUE
def default_held_out_edges(n_tier_a, b2sink_stride=2):
n = n_tier_a
sink = f'f{2 * n - 1}'
held = [(f'f{k}', f'f{n + k}') for k in range(1, n - 1)]
held += [(f'f{n + k}', sink) for k in range(0, n - 1, b2sink_stride)]
return held
N_TIER_A = 25
G, pos, input_nodes, function_nodes, output_nodes, func_func_edges_TRUE = build_convergence_graph(
n_tier_a=N_TIER_A,
)
N_FUNC = len(function_nodes)
HELD_OUT_EDGES = default_held_out_edges(N_TIER_A, b2sink_stride=2)
held_out_set = set(HELD_OUT_EDGES)
kept_ff_set = set(func_func_edges_TRUE) - held_out_set
assert all(G.has_edge(*e) for e in HELD_OUT_EDGES)
assert len(held_out_set & kept_ff_set) == 0
print(f'Tier-A width: {N_TIER_A}')
print(f'inputs: {len(input_nodes)} | functions: {N_FUNC} | outputs: {len(output_nodes)}')
print(f'Function-function edges: {len(func_func_edges_TRUE)}')
print(f'Held-out edges: {len(HELD_OUT_EDGES)} | kept in G_partial: {len(kept_ff_set)}')
print(f'Is DAG: {nx.is_directed_acyclic_graph(G)}')
Tier-A width: 25
inputs: 25 | functions: 50 | outputs: 25
Function-function edges: 72
Held-out edges: 35 | kept in G_partial: 37
Is DAG: True
Simulate data
[3]:
N_TRAIN = 2000
N_TEST = 500
x_train, x_test, y_train, y_test = simulate(
G,
n_train=N_TRAIN,
n_test=N_TEST,
input_nodes=input_nodes,
output_nodes=output_nodes,
noise_scale=0.15,
special_functions=None,
)
x_train = torch.tensor(x_train, dtype=torch.float32).to(device)
x_test = torch.tensor(x_test, dtype=torch.float32).to(device)
y_train = torch.tensor(y_train, dtype=torch.float32).to(device)
y_test = torch.tensor(y_test, dtype=torch.float32).to(device)
y_mu = y_train.mean(0)
y_std = y_train.std(0)
y_train = (y_train - y_mu) / (y_std + 1e-8)
y_test = (y_test - y_mu) / (y_std + 1e-8)
print('train:', x_train.shape, y_train.shape)
print('test:', x_test.shape, y_test.shape)
train: torch.Size([2000, 25]) torch.Size([2000, 25])
test: torch.Size([500, 25]) torch.Size([500, 25])
Build partial graph G_partial
Remove held-out function-function edges. Split held-out edges into validation (early-stopping) and test sets, stratified by structural role.
[4]:
held_out_edges = HELD_OUT_EDGES
held_out_set = set(held_out_edges)
kept_edges = [e for e in func_func_edges_TRUE if e not in held_out_set]
true_ff_set = set(func_func_edges_TRUE)
G_partial = G.copy()
G_partial.remove_edges_from(held_out_edges)
data = nx2pyg(G_partial, input_nodes, function_nodes, output_nodes)
n_non_edges = N_FUNC * (N_FUNC - 1) - len(true_ff_set)
# Stratified val/test split by structural role
sink = f'f{2 * N_TIER_A - 1}'
left_merge = [e for e in held_out_edges if e[1] != sink]
b2sink = [e for e in held_out_edges if e[1] == sink]
rng = np.random.default_rng(0)
rng.shuffle(left_merge)
rng.shuffle(b2sink)
def half_split(edges):
n = len(edges)
return edges[: n // 2], edges[n // 2 :]
edges_val_lm, edges_test_lm = half_split(left_merge)
edges_val_sink, edges_test_sink = half_split(b2sink)
edges_val = edges_val_lm + edges_val_sink
edges_test = edges_test_lm + edges_test_sink
print(f'Held-out function-function edges: {len(held_out_edges)}')
print(f' val: {len(edges_val)} | test: {len(edges_test)}')
print(f'Kept function-function edges: {len(kept_edges)}')
print(f'Non-edges (true negatives): {n_non_edges}')
print(f'G_partial edges: {G_partial.number_of_edges()}')
Held-out function-function edges: 35
val: 17 | test: 18
Kept function-function edges: 37
Non-edges (true negatives): 2378
G_partial edges: 87
Train GSNN + online MagnitudeEdgeRegressor
Joint training loop: GSNN forward/backward, then auxiliary regression step on detached magnitudes. Validation AUC on edges_val selects the best checkpoint.
[5]:
BATCH_SIZE = 64
model_kwargs = {
'channels': 8,
'layers': 6,
'share_layers': False,
'bias': True,
'add_function_self_edges': True,
'norm': 'none',
'dropout': 0.2,
'nonlin': torch.nn.ELU,
'node_mlp': False,
'checkpoint': False,
}
model = GSNN(
data.edge_index_dict,
data.node_names_dict,
**model_kwargs,
).to(device)
regressor = MagnitudeEdgeRegressor(
model, data,
aggregators=('sum', 'max'),
lr=1e-3,
weight_decay=1e-4,
ridge=1e-2,
dropout=0.2,
).to(device)
print('GSNN params:', sum(p.numel() for p in model.parameters()))
print('Regressor params:', sum(p.numel() for p in regressor.parameters()))
train_loader = torch.utils.data.DataLoader(
torch.utils.data.TensorDataset(x_train, y_train),
batch_size=BATCH_SIZE,
shuffle=True,
drop_last=True,
)
gsnn_optim = torch.optim.AdamW(model.parameters(), lr=1e-4, weight_decay=0)
crit = torch.nn.MSELoss()
n_epochs = 30
val_auc_history = []
best_epoch = None
for epoch in range(n_epochs):
model.train()
regressor.train()
epoch_losses = []
for x_batch, y_batch in train_loader:
regressor.pre_forward()
yhat = model(x_batch)
loss = crit(yhat, y_batch)
regressor.arm_retained_grads()
gsnn_optim.zero_grad()
loss.backward()
regressor.aux_step()
gsnn_optim.step()
epoch_losses.append(loss.item())
val_metrics = regressor.evaluate_against(edges_val)
val_auc = val_metrics['auc']
val_auc_history.append(val_auc)
if regressor.maybe_save_best(val_auc):
best_epoch = epoch + 1
if epoch == 0 or (epoch + 1) % 1 == 0 or epoch == n_epochs - 1:
print(
f'epoch {epoch + 1:2d}/{n_epochs} | train loss: {np.mean(epoch_losses):.4f} '
f'| val AUC: {val_auc:.3f} | MRR: {val_metrics["mrr"]:.3f}'
)
model.eval()
with torch.inference_mode():
yhat_test = model(x_test)
loss_test = crit(y_test, yhat_test)
r2_test = r2_score(y_test.detach().cpu().numpy(), yhat_test.detach().cpu().numpy())
print(f'test loss: {loss_test.item():.4f} | test r2: {r2_test:.3f}')
print(f'best val-AUC epoch: {best_epoch}')
GSNN params: 13980
Regressor params: 16480
epoch 1/30 | train loss: 0.9980 | val AUC: 0.788 | MRR: 0.198
epoch 2/30 | train loss: 0.9965 | val AUC: 0.904 | MRR: 0.365
epoch 3/30 | train loss: 0.9929 | val AUC: 0.893 | MRR: 0.407
epoch 4/30 | train loss: 0.9890 | val AUC: 0.912 | MRR: 0.410
epoch 5/30 | train loss: 0.9857 | val AUC: 0.886 | MRR: 0.417
epoch 6/30 | train loss: 0.9793 | val AUC: 0.922 | MRR: 0.416
epoch 7/30 | train loss: 0.9733 | val AUC: 0.922 | MRR: 0.484
epoch 8/30 | train loss: 0.9628 | val AUC: 0.881 | MRR: 0.482
epoch 9/30 | train loss: 0.9512 | val AUC: 0.862 | MRR: 0.570
epoch 10/30 | train loss: 0.9360 | val AUC: 0.913 | MRR: 0.571
epoch 11/30 | train loss: 0.9194 | val AUC: 0.913 | MRR: 0.602
epoch 12/30 | train loss: 0.8986 | val AUC: 0.899 | MRR: 0.601
epoch 13/30 | train loss: 0.8746 | val AUC: 0.882 | MRR: 0.630
epoch 14/30 | train loss: 0.8482 | val AUC: 0.880 | MRR: 0.630
epoch 15/30 | train loss: 0.8183 | val AUC: 0.892 | MRR: 0.630
epoch 16/30 | train loss: 0.7856 | val AUC: 0.870 | MRR: 0.630
epoch 17/30 | train loss: 0.7538 | val AUC: 0.864 | MRR: 0.660
epoch 18/30 | train loss: 0.7176 | val AUC: 0.877 | MRR: 0.661
epoch 19/30 | train loss: 0.6823 | val AUC: 0.877 | MRR: 0.662
epoch 20/30 | train loss: 0.6499 | val AUC: 0.934 | MRR: 0.663
epoch 21/30 | train loss: 0.6205 | val AUC: 0.927 | MRR: 0.661
epoch 22/30 | train loss: 0.5925 | val AUC: 0.919 | MRR: 0.663
epoch 23/30 | train loss: 0.5698 | val AUC: 0.892 | MRR: 0.663
epoch 24/30 | train loss: 0.5558 | val AUC: 0.920 | MRR: 0.665
epoch 25/30 | train loss: 0.5410 | val AUC: 0.935 | MRR: 0.666
epoch 26/30 | train loss: 0.5329 | val AUC: 0.917 | MRR: 0.667
epoch 27/30 | train loss: 0.5282 | val AUC: 0.919 | MRR: 0.667
epoch 28/30 | train loss: 0.5251 | val AUC: 0.907 | MRR: 0.669
epoch 29/30 | train loss: 0.5223 | val AUC: 0.905 | MRR: 0.668
epoch 30/30 | train loss: 0.5239 | val AUC: 0.919 | MRR: 0.667
test loss: 0.4999 | test r2: 0.487
best val-AUC epoch: 25

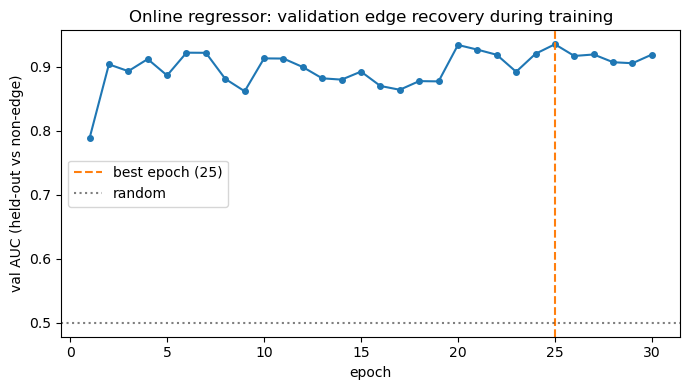

Validation AUC vs epoch
[11]:
fig, ax = plt.subplots(figsize=(7, 4))
ax.plot(range(1, n_epochs + 1), val_auc_history, marker='o', ms=4)
if best_epoch is not None:
ax.axvline(best_epoch, color='C1', ls='--', label=f'best epoch ({best_epoch})')
ax.axhline(0.5, color='k', ls=':', alpha=0.5, label='random')
ax.set_xlabel('epoch')
ax.set_ylabel('val AUC (held-out vs non-edge)')
ax.set_title('Online regressor: validation edge recovery during training')
ax.legend()
plt.tight_layout()
plt.show()

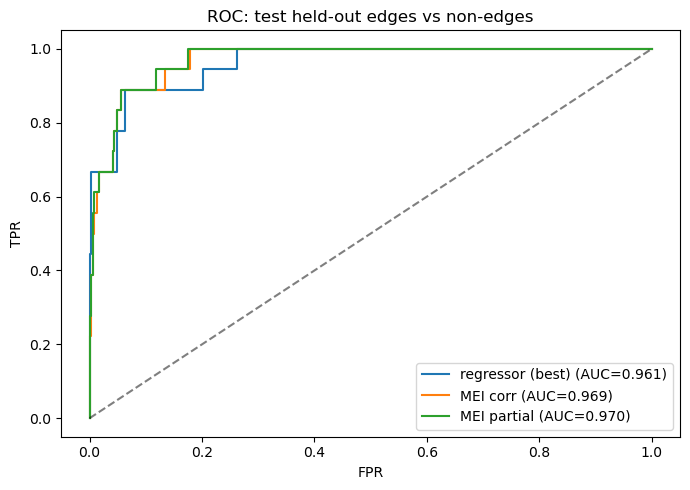

Compare regressor (best checkpoint) vs post-hoc MagnitudeEdgeInferer
Load the best regressor checkpoint, then run post-hoc MagnitudeEdgeInferer on the final GSNN for head-to-head comparison on test held-out edges.
[12]:
regressor.load_best()
res_reg = regressor.evaluate()
# Post-hoc MEI on final model
MEI = MagnitudeEdgeInferer(model, data, reduction='l1')
infer_loader = torch.utils.data.DataLoader(
torch.utils.data.TensorDataset(x_train, y_train),
batch_size=BATCH_SIZE,
shuffle=False,
drop_last=True,
)
MEI.fit(infer_loader, crit=crit, device=device, verbose=False)
res_corr = MEI.evaluate(layer_agg='max', score='corr')
res_partial = MEI.evaluate(layer_agg='max', score='partial')
print('Top 10 regressor scores:')
print(res_reg[['src_func', 'dst_func', 'score', 'has_edge', 'q_value']].head(10).to_string())
Top 10 regressor scores:
src_func dst_func score has_edge q_value
0 f1 f26 0.461439 False 0.527687
1 f22 f47 0.400908 False 0.527687
2 f16 f41 0.400895 False 0.527687
3 f6 f31 0.398516 False 0.527687
4 f23 f48 0.397042 False 0.527687
5 f2 f27 0.395549 False 0.527687
6 f12 f37 0.394976 False 0.527687
7 f18 f43 0.392816 False 0.527687
8 f14 f39 0.390867 False 0.527687
9 f8 f33 0.388819 False 0.527687
[13]:
print(res_reg[['src_func', 'dst_func', 'score', 'has_edge', 'q_value']].tail(10).to_string())
src_func dst_func score has_edge q_value
2440 f7 f36 0.000032 False 0.527687
2441 f17 f23 0.000031 False 0.527687
2442 f31 f29 0.000030 False 0.527687
2443 f5 f7 0.000025 False 0.527687
2444 f38 f44 0.000020 False 0.527687
2445 f44 f34 0.000015 False 0.527687
2446 f0 f18 0.000008 False 0.527687
2447 f25 f19 0.000003 False 0.527687
2448 f45 f2 0.000003 False 0.527687
2449 f31 f39 0.000002 False 0.527687
Test-set ROC comparison
[14]:
def roc_auc_for_edges(res_df, positive_edges, score_col='score'):
pos_set = set(positive_edges)
pos = res_df[res_df.apply(lambda r: (r['src_func'], r['dst_func']) in pos_set, axis=1)][score_col].dropna().values
neg = res_df[~res_df.apply(lambda r: (r['src_func'], r['dst_func']) in pos_set, axis=1)]
neg = neg[neg.apply(lambda r: (r['src_func'], r['dst_func']) not in kept_ff_set, axis=1)][score_col].dropna().values
if len(pos) == 0 or len(neg) == 0:
return float('nan')
y_true = np.concatenate([np.ones(len(pos)), np.zeros(len(neg))])
y_score = np.concatenate([pos, neg])
return roc_auc_score(y_true, y_score)
def print_target_ranking(label, res_df, positive_edges):
detail, summary = MagnitudeEdgeRegressor.evaluate_target_ranking(
res_df, positive_edges=positive_edges, score_col='score' if 'score' in res_df.columns else 'corr',
)
print(f'=== {label} ===')
print(f" MRR: {summary['mrr']:.3f} top@1: {summary['top@1']:.3f} top@3: {summary['top@3']:.3f}")
return summary
kept_set = set(kept_edges)
results = {
'regressor (best)': (res_reg, 'score'),
'MEI corr': (res_corr, 'corr'),
'MEI partial': (res_partial, 'corr'),
}
print('Test-set ROC-AUC (held-out test vs non-edges):')
for name, (df, col) in results.items():
auc = roc_auc_for_edges(df, edges_test, score_col=col)
print(f' {name:20s}: AUC = {auc:.3f}')
print()
for name, (df, col) in results.items():
if col != 'score':
df = df.rename(columns={'corr': 'score'})
print_target_ranking(name, df, edges_test)
Test-set ROC-AUC (held-out test vs non-edges):
regressor (best) : AUC = 0.961
MEI corr : AUC = 0.969
MEI partial : AUC = 0.970
=== regressor (best) ===
MRR: 0.687 top@1: 0.667 top@3: 0.667
=== MEI corr ===
MRR: 0.707 top@1: 0.667 top@3: 0.667
=== MEI partial ===
MRR: 0.707 top@1: 0.667 top@3: 0.667
ROC curves on test held-out edges
[15]:
fig, ax = plt.subplots(figsize=(7, 5))
for name, (df, col) in results.items():
pos_set = set(edges_test)
pos = df[df.apply(lambda r: (r['src_func'], r['dst_func']) in pos_set, axis=1)][col].dropna().values
neg = df[~df.apply(lambda r: (r['src_func'], r['dst_func']) in pos_set, axis=1)]
neg = neg[neg.apply(lambda r: (r['src_func'], r['dst_func']) not in kept_ff_set, axis=1)][col].dropna().values
if len(pos) == 0 or len(neg) == 0:
continue
y_true = np.concatenate([np.ones(len(pos)), np.zeros(len(neg))])
y_score = np.concatenate([pos, neg])
auc = roc_auc_score(y_true, y_score)
fpr, tpr, _ = roc_curve(y_true, y_score)
ax.plot(fpr, tpr, label=f'{name} (AUC={auc:.3f})')
ax.plot([0, 1], [0, 1], 'k--', alpha=0.5)
ax.set_xlabel('FPR')
ax.set_ylabel('TPR')
ax.set_title('ROC: test held-out edges vs non-edges')
ax.legend()
plt.tight_layout()
plt.show()
Discussion
MagnitudeEdgeRegressor trains a shared (N, N) weight matrix online during GSNN training. Unlike post-hoc correlation (MagnitudeEdgeInferer), it:
Reuses the training forward/backward — no extra pass over the data.
Multivariate regression — each target gradient magnitude is predicted from all source activations, conditioning on other sources automatically (partial-correlation-like).
Validation early-stopping — held-out edges drive checkpoint selection, mitigating gradient absorption at equilibrium (see
docs/notes/edge_inference_notes.md§4.5 / §7.1).
The val-AUC vs epoch plot should show a peak before full convergence, when missing edges still produce informative gradient signal.
