import networkx as nx
from matplotlib import pyplot as plt
import seaborn as sbn
import numpy as np
from scipy.integrate import solve_ivp
import networkx as nx
import random
import torch
import copy
import pandas as pd
import gc
import torch_geometric as pyg

from gsnn.models.GSNN import GSNN
from gsnn.models.NN import NN
from gsnn.simulate.nx2pyg import nx2pyg
from gsnn.simulate.simulate import simulate
from gsnn.optim.EarlyStopper import EarlyStopper
from gsnn.simulate.datasets import simulate_3_in_3_out

# for reproducibility
torch.manual_seed(0)
np.random.seed(0)

%load_ext autoreload
%autoreload 2

/home/teddy/miniconda3/envs/gsnn-mds/lib/python3.12/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

G, pos, x_train, x_test, y_train, y_test, input_nodes, function_nodes, output_nodes = simulate_3_in_3_out(n_train=10, n_test=100, noise_scale=0.1, device='cuda')

plt.figure(figsize=(8, 6))
nx.draw_networkx(G, pos, with_labels=True, node_color='lightblue', node_size=500, font_size=10, arrowstyle='->', arrowsize=20)

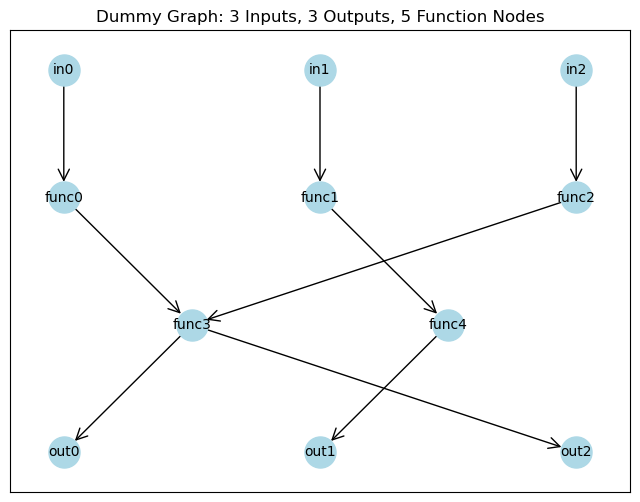

plt.title("Dummy Graph: 3 Inputs, 3 Outputs, 5 Function Nodes")
plt.show()

Performance comparison on simulated data

def train(model, model_params, train_params, x_train, y_train, x_test, y_test, device, max_epochs=500, patience=20):

    gc.collect()
    torch.cuda.empty_cache()

    model = model(**model_params).to(device)

    optim = torch.optim.Adam(model.parameters(), lr=train_params['lr'], weight_decay=train_params['weight_decay'])
    crit = torch.nn.MSELoss()

    early_stopper = EarlyStopper(patience=patience, min_delta=1e-3)

    losses = []
    for i in range(max_epochs):
        model.train()
        optim.zero_grad()
        yhat = model(x_train)
        loss = crit(y_train, yhat)
        loss.backward()
        optim.step()

        with torch.no_grad():
            model.eval()
            loss = crit(model(x_test), y_test)
            losses.append(loss.item())
            if early_stopper.early_stop(loss): break

    del model; del optim; del crit

    return losses

def run_search(model, model_params, training_params, x_train, y_train, x_test, y_test, device, iters=10):

    res = {**{k:[] for k in model_params.keys() if k not in ['edge_index_dict', 'node_names_dict']}, **{k:[] for k in training_params.keys()}}
    losses = []
    for i in range(iters):
        print(f'progress: {i}/{iters}', end='\r')

        mp = {k:np.random.choice(model_params[k], size=1).item() for k,v in model_params.items()}
        tp = {k:np.random.choice(training_params[k], size=1).item() for k,v in training_params.items()}
        losses.append( train(model, mp, tp, x_train, y_train, x_test, y_test, device) )

        _=[res[k].append(v) for k,v in mp.items() if k not in ['edge_index_dict', 'node_names_dict']]
        _=[res[k].append(v) for k,v in tp.items()]

    res = pd.DataFrame(res)
    return res, losses

device = 'cuda' if torch.cuda.is_available() else 'cpu'

iters = 250

gsnn_search_space = {'channels':np.arange(2, 20).tolist(),
                'layers':np.arange(1, 10).tolist(),
                'share_layers':[True, False],
                'add_function_self_edges':[True, False],
                'norm':['none', 'layer', 'batch', 'softmax', 'groupbatch'],
                'norm_first':[True, False],
                'init':['xavier_uniform', 'xavier_normal', 'kaiming_uniform', 'kaiming_normal', 'degree_normalized'],
                'bias':[True, False],
                'node_attn':[True, False],
                'dropout':[0, 0.1],
                'residual':[True, False]}

gsnn_training_params = {'lr': [1e-2, 5e-3, 1e-3],
                        'max_epochs':[100],
                        'device':[device],
                        'weight_decay':[0, 1e-2, 1e-4, 1e-6]}

# GSNN with true graph structure
data = nx2pyg(G, input_nodes, function_nodes, output_nodes)

model_params = {**{'edge_index_dict':[data.edge_index_dict],
                'node_names_dict':[data.node_names_dict]},
                **gsnn_search_space}

res_gsnn, test_losses_gsnn = run_search(GSNN, model_params, gsnn_training_params, x_train, y_train, x_test, y_test, device, iters=iters)

res_gsnn = res_gsnn.assign(last_loss=[x[-1] for x in test_losses_gsnn],
                            best_loss=[min(x) for x in test_losses_gsnn])

progress: 0/250

/home/teddy/local/GSNN/gsnn/models/GSNN.py:543: UserWarning: It is recommended to apply softmax normalization after the nonlinearity (set norm_first=False)
  if norm_first: warnings.warn('It is recommended to apply softmax normalization after the nonlinearity (set norm_first=False)')

progress: 249/250

# choose random edges from GSNN graph structure

edge_index_dict = copy.deepcopy(data.edge_index_dict)
E = edge_index_dict['function', 'to', 'function'].size(1)
edge_index_dict['function', 'to', 'function']  = torch.randint(low=0, high=len(function_nodes), size=(2,E))

model_params = {**{'edge_index_dict':[edge_index_dict],
                'node_names_dict':[data.node_names_dict]},
                **gsnn_search_space}

res_gsnn_rand, test_losses_gsnn_rand = run_search(GSNN, model_params, gsnn_training_params, x_train, y_train, x_test, y_test, device, iters=iters)

res_gsnn_rand = res_gsnn_rand.assign(last_loss=[x[-1] for x in test_losses_gsnn_rand],
                            best_loss=[min(x) for x in test_losses_gsnn_rand])

progress: 2/250

<string>:86: UserWarning: It is recommended to apply softmax normalization after the nonlinearity (set norm_first=False)

progress: 249/250

# Fully connected GSNN (all nodes connected to each other)

edge_index_dict = copy.deepcopy(data.edge_index_dict)
edge_index_dict['function', 'to', 'function']  = torch.stack((torch.arange(len(function_nodes)).repeat_interleave(len(function_nodes)),
                                                              torch.arange(len(function_nodes)).repeat(len(function_nodes))), dim=0)

model_params = {**{'edge_index_dict':[edge_index_dict],
                'node_names_dict':[data.node_names_dict]},
                **gsnn_search_space}

res_gsnn_full, test_losses_gsnn_full = run_search(GSNN, model_params, gsnn_training_params, x_train, y_train, x_test, y_test, device, iters=iters)

res_gsnn_full = res_gsnn_full.assign(last_loss=[x[-1] for x in test_losses_gsnn_full],
                            best_loss=[min(x) for x in test_losses_gsnn_full])

progress: 1/250

<string>:86: UserWarning: It is recommended to apply softmax normalization after the nonlinearity (set norm_first=False)

progress: 249/250

nn_model_params = {'in_channels':[x_train.size(1)],
                'out_channels':[y_train.size(1)],
                'hidden_channels':[16,32,64,128,256,512],
                'layers':[1,2,3],
                'norm':[torch.nn.BatchNorm1d, torch.nn.LayerNorm, None],
                'dropout':[0, 0.1, 0.25]}

nn_training_params = {'lr': [1e-2, 1e-3, 1e-4],
                      'max_epochs':[100],
                        'device':[device],
                        'weight_decay':[0, 1e-2, 1e-4, 1e-6]}

res_nn, losses_nn = run_search(NN, nn_model_params, nn_training_params, x_train, y_train, x_test, y_test, device, iters=iters)

progress: 249/250

print(f'best test loss NN: {min([min(loss) for loss in losses_nn])}')
print(f'best test loss GSNN: {min([min(loss) for loss in test_losses_gsnn])}')
print(f'best test loss GSNN (rand graph): {min([min(loss) for loss in test_losses_gsnn_rand])}')
print(f'best test loss GSNN (fully connected): {min([min(loss) for loss in test_losses_gsnn_full])}')

best test loss NN: 0.7176795601844788
best test loss GSNN: 0.5735707879066467
best test loss GSNN (rand graph): 1.8951518535614014
best test loss GSNN (fully connected): 0.6027514338493347

alpha = 0.25

plt.figure(figsize=(10,5))

for i, loss in enumerate(losses_nn):
    if i == 0:
        plt.plot(loss, 'r-', label='nn', alpha=alpha)
    else:
        plt.plot(loss, 'r-', alpha=alpha)

for i, loss in enumerate(test_losses_gsnn):
    if i == 0:
        plt.plot(loss, 'b-', label='gsnn', alpha=alpha)
    else:
        plt.plot(loss, 'b-', alpha=alpha)

for i, loss in enumerate(test_losses_gsnn_rand):
    if i == 0:
        plt.plot(loss, 'g-', label='gsnn [rand graph]', alpha=alpha)
    else:
        plt.plot(loss, 'g-', alpha=alpha)

for i, loss in enumerate(test_losses_gsnn_full):
    if i == 0:
        plt.plot(loss, 'k-', label='gsnn [fully connected graph]', alpha=alpha)
    else:
        plt.plot(loss, 'k-', alpha=alpha)

plt.xlabel('Epochs')

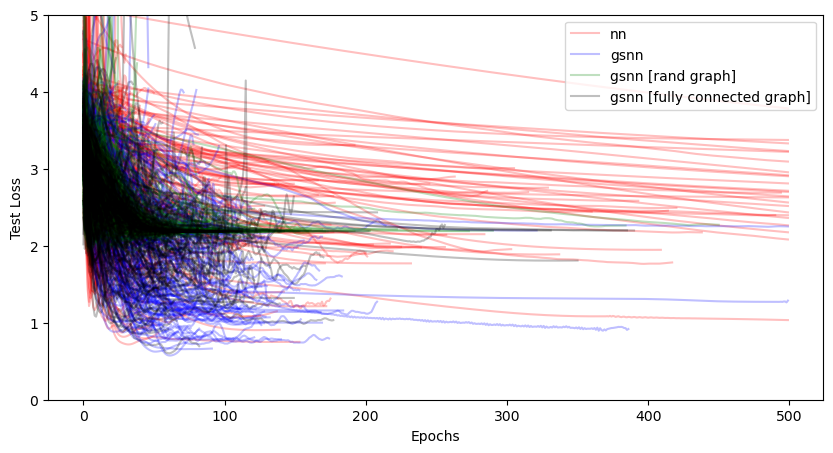

plt.ylabel('Test Loss')

plt.ylim(0.,5)
plt.legend()
#plt.yscale('log')
plt.show()

bins = np.linspace(0.,1.5,20)

plt.figure()
plt.hist([min(loss) for loss in losses_nn], label='nn', alpha=0.25, color='r', bins=bins)
plt.hist([min(loss) for loss in test_losses_gsnn], label='gsnn', alpha=0.25, color='b', bins=bins)
plt.hist([min(loss) for loss in test_losses_gsnn_rand], label='gsnn [rand graph]', alpha=0.25, color='g', bins=bins)
plt.hist([min(loss) for loss in test_losses_gsnn_full], label='gsnn [fully connected graph]', alpha=0.25, color='k', bins=bins)

plt.axvline(np.nanmin([min(loss) for loss in losses_nn]),  color='r', label='best loss nn')
plt.axvline(np.nanmin([min(loss) for loss in test_losses_gsnn]),  color='b', label='best loss gsnn')
plt.axvline(np.nanmin([min(loss) for loss in test_losses_gsnn_rand]),  color='g', label='best loss gsnn [rand graph]')
plt.axvline(np.nanmin([min(loss) for loss in test_losses_gsnn_full]), color='k', label='best loss gsnn [fully connected graph]')

plt.xlabel('Test Loss')
plt.ylabel('Frequency')

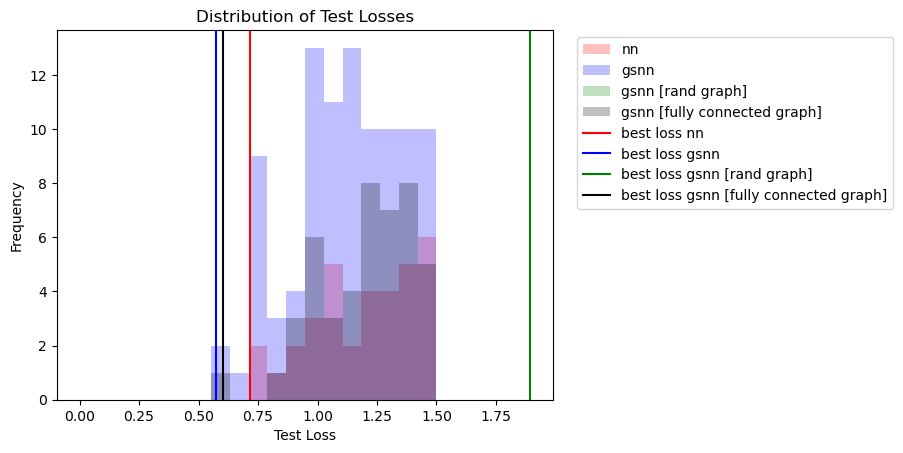

plt.title('Distribution of Test Losses')

# place legend outside
plt.legend(loc='upper right', bbox_to_anchor=(1.7, 1))

plt.show()

# best gsnn hyper params
res_gsnn.sort_values(by='best_loss', ascending=True).head(10)

	channels	layers	share_layers	add_function_self_edges	norm	norm_first	init	bias	node_attn	dropout	residual	lr	max_epochs	device	weight_decay	last_loss	best_loss
227	16	6	True	False	groupbatch	True	kaiming_uniform	True	True	0.0	True	0.001	100	cuda	0.000001	0.923655	0.573571
225	9	6	True	False	batch	False	xavier_normal	True	True	0.0	True	0.001	100	cuda	0.010000	0.739822	0.624148
124	19	7	True	True	none	True	xavier_uniform	True	False	0.0	True	0.005	100	cuda	0.010000	0.664637	0.656619
68	5	2	True	False	none	True	xavier_uniform	True	False	0.1	True	0.005	100	cuda	0.000100	0.793066	0.720276
201	9	5	True	False	groupbatch	False	kaiming_uniform	True	False	0.1	True	0.001	100	cuda	0.000001	0.810300	0.728431
90	5	8	False	True	none	False	xavier_normal	False	True	0.1	True	0.001	100	cuda	0.000100	0.875153	0.734254
143	9	4	False	True	groupbatch	False	degree_normalized	True	False	0.1	True	0.010	100	cuda	0.000001	0.796136	0.740526
86	17	6	True	False	groupbatch	False	xavier_uniform	True	False	0.1	True	0.001	100	cuda	0.000001	0.784862	0.740692
62	7	8	False	False	batch	True	degree_normalized	False	True	0.1	True	0.010	100	cuda	0.000100	0.873577	0.741292
129	13	4	True	True	groupbatch	False	degree_normalized	False	False	0.1	False	0.010	100	cuda	0.000100	0.970243	0.763087

res_gsnn.sort_values(by='best_loss', ascending=False).head(10)

	channels	layers	share_layers	add_function_self_edges	norm	norm_first	init	bias	node_attn	dropout	residual	lr	max_epochs	device	weight_decay	last_loss	best_loss
63	3	7	False	True	softmax	False	xavier_normal	False	False	0.1	False	0.005	100	cuda	0.000000	3.849866	3.725335
210	5	6	True	False	layer	False	kaiming_uniform	False	True	0.1	False	0.001	100	cuda	0.000000	4.014930	3.709452
219	3	8	True	True	softmax	False	kaiming_normal	True	False	0.1	True	0.005	100	cuda	0.010000	3.836648	3.690697
147	3	1	False	False	layer	True	degree_normalized	False	False	0.0	True	0.001	100	cuda	0.000100	3.814396	3.670802
10	2	4	True	False	softmax	False	kaiming_normal	True	True	0.0	True	0.010	100	cuda	0.000001	4.247405	3.662463
19	17	7	True	False	groupbatch	True	degree_normalized	False	True	0.1	False	0.001	100	cuda	0.000001	3.705945	3.649127
24	7	9	True	False	groupbatch	False	xavier_uniform	True	False	0.1	False	0.001	100	cuda	0.010000	3.892294	3.640035
145	10	1	False	True	softmax	True	degree_normalized	False	False	0.0	True	0.001	100	cuda	0.000000	3.644818	3.631876
125	7	5	True	False	softmax	False	kaiming_uniform	False	False	0.0	True	0.010	100	cuda	0.000001	3.981524	3.625456
66	4	8	True	False	softmax	True	xavier_normal	True	True	0.0	True	0.005	100	cuda	0.000001	3.759164	3.614584

plt.figure()
sbn.boxplot(x='node_attn', y='best_loss', data=res_gsnn[lambda x: x.best_loss < 1.5])
plt.show()

plt.figure()

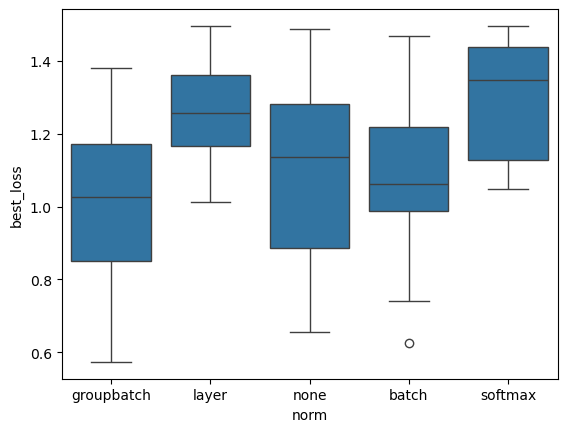

sbn.boxplot(x='norm', y='best_loss', data=res_gsnn[lambda x: x.best_loss < 1.5])
plt.show()

plt.figure()
sbn.boxplot(x='norm_first', y='best_loss', data=res_gsnn[lambda x: x.best_loss < 1.5])
plt.show()

plt.figure()

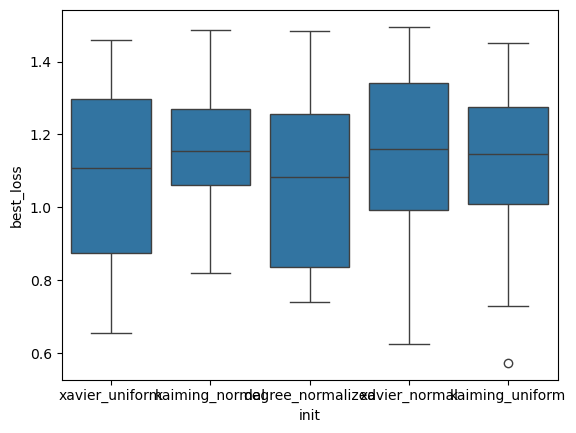

sbn.boxplot(x='init', y='best_loss', data=res_gsnn[lambda x: x.best_loss < 1.5])
plt.show()

plt.figure()
sbn.boxplot(x='share_layers', y='best_loss', data=res_gsnn[lambda x: x.best_loss < 1.5])
plt.show()

plt.figure()
sbn.boxplot(x='bias', y='best_loss', data=res_gsnn[lambda x: x.best_loss < 1.5])
plt.show()

plt.figure()
sbn.boxplot(x='add_function_self_edges', y='best_loss', data=res_gsnn[lambda x: x.best_loss < 1.5])
plt.show()

plt.figure()
sbn.boxplot(x='dropout', y='best_loss', data=res_gsnn[lambda x: x.best_loss < 1.5])
plt.show()

plt.figure()
sbn.boxplot(x='weight_decay', y='best_loss', data=res_gsnn[lambda x: x.best_loss < 1.5])
plt.show()

plt.figure()
sbn.boxplot(x='lr', y='best_loss', data=res_gsnn[lambda x: x.best_loss < 1.5])
plt.show()

plt.figure()
sbn.boxplot(x='layers', y='best_loss', data=res_gsnn[lambda x: x.best_loss < 1.5])
plt.show()

plt.figure()

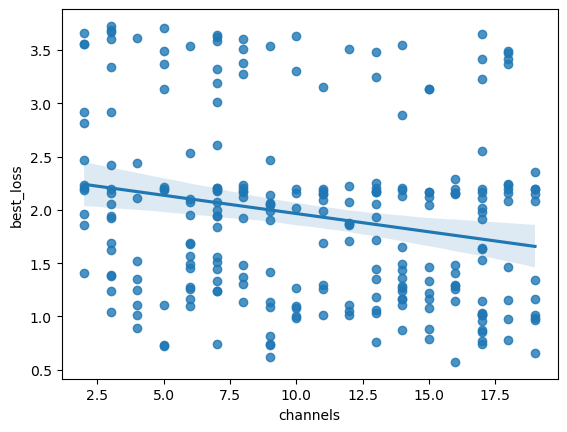

sbn.regplot(x='channels', y='best_loss', data=res_gsnn)
plt.show()

plt.figure()
sbn.boxplot(x='residual', y='best_loss', data=res_gsnn[lambda x: x.best_loss < 1.5])
plt.show()
