import networkx as nx
from matplotlib import pyplot as plt
import numpy as np
import networkx as nx
import torch

from gsnn.models.GSNN import GSNN
from gsnn.simulate.nx2pyg import nx2pyg
from gsnn.simulate.simulate import simulate, simulate_sde

from gsnn.interpret.extract_entity_function import extract_entity_function

%load_ext autoreload
%autoreload 2

# for reproducibility
torch.manual_seed(0)
np.random.seed(0)

The autoreload extension is already loaded. To reload it, use:
  %reload_ext autoreload

Simulating structured data

To demonstrate how the GSNN operates, and some simple capabilities, we have written a simple bayesian network simulator. We will start by defining a simple toy graph with three inputs and three outputs.

# Create a simple directed graph with 3 inputs, 3 outputs, and 5 function nodes
G = nx.DiGraph()

# Add input nodes, function nodes, and output nodes
input_nodes = ['in0', 'in1', 'in2']
function_nodes = ['func0', 'func1', 'func2', 'func3', 'func4']
output_nodes = ['out0', 'out1', 'out2']

# Add edges from input nodes to function nodes
G.add_edges_from([('in0', 'func0'), ('in1', 'func1'), ('in2', 'func2')])

# Add edges between function nodes
G.add_edges_from([('func0', 'func3'), ('func1', 'func4'), ('func2', 'func3')])

# Add edges from function nodes to output nodes
G.add_edges_from([('func3', 'out0'), ('func4', 'out1'), ('func3', 'out2')])

# Define positions for each node for plotting
pos = {
    'in0': (-2, 2), 'in1': (0, 2), 'in2': (2, 2),
    'func0': (-2, 1), 'func1': (0, 1), 'func2': (2, 1),
    'func3': (-1, 0), 'func4': (1, 0),
    'out0': (-2, -1), 'out1': (0, -1), 'out2': (2, -1)
}

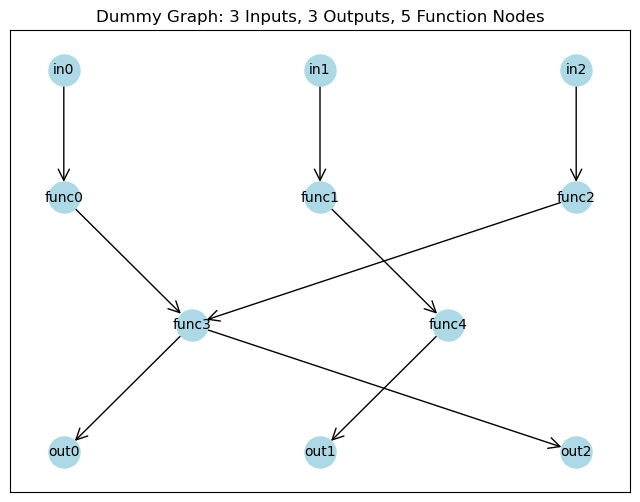

# Plot the graph
plt.figure(figsize=(8, 6))
nx.draw_networkx(G, pos, with_labels=True, node_color='lightblue', node_size=500, font_size=10, arrowstyle='->', arrowsize=20)
plt.title("Dummy Graph: 3 Inputs, 3 Outputs, 5 Function Nodes")
plt.show()

Simulating function nodes

To simulate more complex functions, we can add specific function behaviors to our network by passing the special_functions dict to simulate. This enables us to add non-linear node functions to the graph. For instance, in the example below, func2 will exponentiate the inputs.

The simulate function uses pyro to create a bayesian network that emualtes our graph structure. For our application, each node is modeled as a univariate standard normal distribution where the scale and location of each node is dependant on the values of the preceding nodes.

NOTE: Using bayesian networks requires that no cycles exists in the graph. Notably, the GSNN can handle cycles and we plan to add more complex simulations that can create these behaviors (i.e., ODE simulations)

special_functions = {'func1': lambda x: -np.mean(x), 'func2':lambda x: np.sum([np.exp(xx) for xx in x]),
                     'func0': lambda x: np.mean(([(xx)**2 for xx in x])), 'func3': lambda x: -np.mean(x) if all([xx > 0 for xx in x]) else np.mean(x)}

x_train, x_test, y_train, y_test = simulate(G, n_train=500, n_test=100, input_nodes=input_nodes, output_nodes=output_nodes,
                                            special_functions=special_functions, noise_scale=0.001)

device = 'cuda' if torch.cuda.is_available() else 'cpu'

x_train = torch.tensor(x_train, dtype=torch.float32).to(device)
y_train = torch.tensor(y_train, dtype=torch.float32).to(device)

x_test = torch.tensor(x_test, dtype=torch.float32).to(device)
y_test = torch.tensor(y_test, dtype=torch.float32).to(device)

/tmp/ipykernel_4829/2730712319.py:1: DeprecationWarning: __array_wrap__ must accept context and return_scalar arguments (positionally) in the future. (Deprecated NumPy 2.0)
  special_functions = {'func1': lambda x: -np.mean(x), 'func2':lambda x: np.sum([np.exp(xx) for xx in x]),

Training GSNN with simulated data

We can train a GSNN model using our synthetic data. Note that we have chosen the hyperparameters to demonstrate some of the inner workings of the GSNN, however, changing these hyperparameters can muddy the interpretation.

data = nx2pyg(G, input_nodes, function_nodes, output_nodes)

model = GSNN(data.edge_index_dict,
             data.node_names_dict,
             channels=20,
             layers=2,
             share_layers=False,
             bias=True,
             add_function_self_edges=False,
             checkpoint=False,
             norm='none',
             init='degree_normalized',
             residual=True,
             node_attn=False,
             dropout=0.).to(device)

print('n params', sum([p.numel() for p in model.parameters()]))

optim = torch.optim.AdamW(model.parameters(), lr=1e-2, weight_decay=1e-2)
crit = torch.nn.MSELoss()

losses_gsnn = []
for i in range(1000):
    model.train()
    optim.zero_grad()

    yhat = model(x_train)
    loss = crit(y_train, yhat)
    loss.backward()
    optim.step()

    with torch.no_grad():
        model.eval()
        yhat = model(x_test)
        loss = crit(y_test, yhat)

    print(f'iter: {i} | loss: {loss.item():.3f}',end='\r')

n params 11276
iter: 999 | loss: 0.062

Interpreting learned functions

We can also extract individual function nodes and evaluate their learned behavior. Note that function nodes that have more than one input or output will require more advanced visualization or interpretation methods (SHAP, LIME, etc.)

Interpretation limitations

In most scenarios, we do not know the exact required path length and will want to use more competive architectures that make interpretation of individual function nodes more complicated. For instance, if we use a greater number of layers, then many layers may contribute to the prediction of an outcome, so the true effect a function node is an aggregate of many layers behaviors. This challenge is further exacerbated if we change share_layers=False as each layer will learn unique functions for each node.

Additionally, in a “chain” of latent functions, the specific functions may be shuffled or aggregated, and the sign of individual function nodes may be flipped. For instance, in our example func1 and func4 may be switched but would still have good performance. In more complex networks with a greater number of outputs, this behavior is liable to converge to more accurate function specific representations.

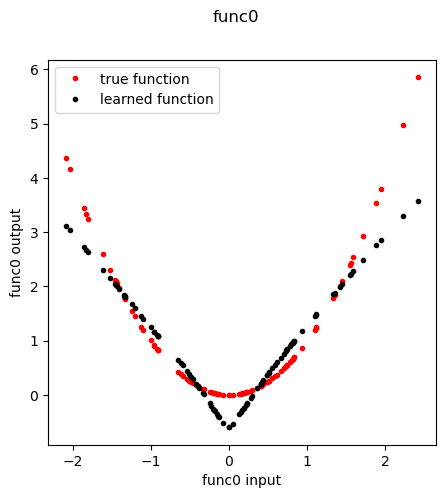

Extract the Func0 GSNN learned node function

model = model.eval()

fn = 'func0'

f,axes = plt.subplots(1,1, figsize=(5,5), sharey=True)
plt.suptitle( fn )

func, meta = extract_entity_function(node=fn, model=model, data=data, layer=0)
n_inputs = func.lin_in.weight.data.shape[1]
inp = torch.randn(100, n_inputs)
out = func(inp)

if fn in special_functions:
    out_true = [special_functions[fn](np.array(x)) for x in inp]
else:
    out_true = [x for x in inp]

plt.plot(inp, out_true, 'r.', label='true function')
plt.plot(inp.detach().cpu().numpy().ravel(), out.detach().cpu().numpy().ravel(), 'k.', label='learned function')

plt.xlabel(f'{fn} input')
plt.ylabel(f'{fn} output')
plt.legend()
plt.show()

/tmp/ipykernel_4829/1489212564.py:12: DeprecationWarning: __array__ implementation doesn't accept a copy keyword, so passing copy=False failed. __array__ must implement 'dtype' and 'copy' keyword arguments. To learn more, see the migration guide https://numpy.org/devdocs/numpy_2_0_migration_guide.html#adapting-to-changes-in-the-copy-keyword
  out_true = [special_functions[fn](np.array(x)) for x in inp]

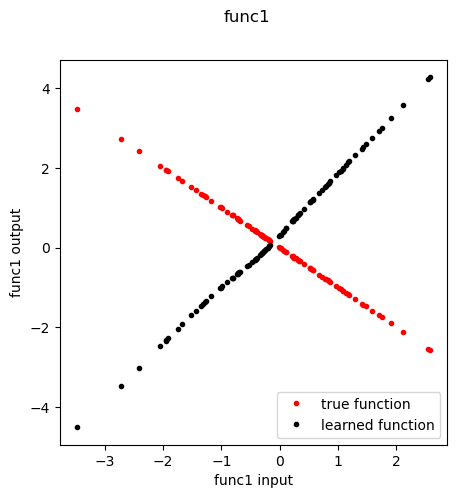

fn = 'func1'

f,axes = plt.subplots(1,1, figsize=(5,5), sharey=True)
plt.suptitle( fn )

func, meta = extract_entity_function(node=fn, model=model, data=data, layer=0)
n_inputs = func.lin_in.weight.data.shape[1]
inp = torch.randn(100, n_inputs)
out = func(inp)

if fn in special_functions:
    out_true = [special_functions[fn](np.array(x)) for x in inp]
else:
    out_true = [x for x in inp]

plt.plot(inp, out_true, 'r.', label='true function')
plt.plot(inp.detach().cpu().numpy().ravel(), out.detach().cpu().numpy().ravel(), 'k.', label='learned function')

plt.xlabel(f'{fn} input')
plt.ylabel(f'{fn} output')
plt.legend()
plt.show()

/tmp/ipykernel_4829/591615005.py:12: DeprecationWarning: __array__ implementation doesn't accept a copy keyword, so passing copy=False failed. __array__ must implement 'dtype' and 'copy' keyword arguments. To learn more, see the migration guide https://numpy.org/devdocs/numpy_2_0_migration_guide.html#adapting-to-changes-in-the-copy-keyword
  out_true = [special_functions[fn](np.array(x)) for x in inp]

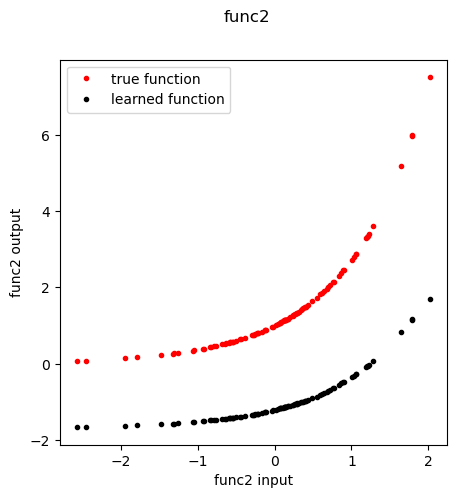

Extract the Func2 GSNN learned node function

fn = 'func2'

f,axes = plt.subplots(1,1, figsize=(5,5), sharey=True)
plt.suptitle( fn )

func, meta = extract_entity_function(node=fn, model=model, data=data, layer=0)
n_inputs = func.lin_in.weight.data.shape[1]
inp = torch.randn(100, n_inputs)
out = func(inp)

if fn in special_functions:
    out_true = [special_functions[fn](np.array(x)) for x in inp]
else:
    out_true = [x for x in inp]

plt.plot(inp, out_true, 'r.', label='true function')
plt.plot(inp.detach().cpu().numpy().ravel(), out.detach().cpu().numpy().ravel(), 'k.', label='learned function')

plt.xlabel(f'{fn} input')
plt.ylabel(f'{fn} output')
plt.legend()
plt.show()

/tmp/ipykernel_4829/417286389.py:12: DeprecationWarning: __array__ implementation doesn't accept a copy keyword, so passing copy=False failed. __array__ must implement 'dtype' and 'copy' keyword arguments. To learn more, see the migration guide https://numpy.org/devdocs/numpy_2_0_migration_guide.html#adapting-to-changes-in-the-copy-keyword
  out_true = [special_functions[fn](np.array(x)) for x in inp]

simulating data with stochastic differential equations

x_train, y_train, x_test, y_test = simulate_sde(
    G, n_train=500, n_test=200,
    input_nodes=input_nodes,
    output_nodes=output_nodes,
    noise_scale=0.5,     # Diffusion coefficient
    dt=0.01,             # Time step for integration
    t_final=10.0,        # Final integration time
    special_functions=special_functions,
    seed=42              # For reproducibility
)

device = 'cuda' if torch.cuda.is_available() else 'cpu'

x_train = torch.tensor(x_train, dtype=torch.float32).to(device)
y_train = torch.tensor(y_train, dtype=torch.float32).to(device)

x_test = torch.tensor(x_test, dtype=torch.float32).to(device)
y_test = torch.tensor(y_test, dtype=torch.float32).to(device)

data = nx2pyg(G, input_nodes, function_nodes, output_nodes)

model = GSNN(data.edge_index_dict,
             data.node_names_dict,
             channels=30,
             layers=2,
             share_layers=False,
             bias=True,
             add_function_self_edges=False,
             checkpoint=False,
             norm='none',
             init='degree_normalized',
             residual=True,
             node_attn=False,
             dropout=0.0).to(device)

print('n params', sum([p.numel() for p in model.parameters()]))

optim = torch.optim.AdamW(model.parameters(), lr=1e-3, weight_decay=1e-4)
crit = torch.nn.MSELoss()

losses_gsnn = []
for i in range(1000):
    model.train()
    optim.zero_grad()

    yhat = model(x_train)
    loss = crit(y_train, yhat)
    loss.backward()
    optim.step()

    with torch.no_grad():
        model.eval()
        yhat = model(x_test)
        loss = crit(y_test, yhat)

    print(f'iter: {i} | loss: {loss.item():.3f}',end='\r')

n params 17348
iter: 999 | loss: 0.673

np.corrcoef(yhat.detach().cpu().numpy().ravel(), y_test.detach().cpu().numpy().ravel())[0,1]

np.float64(0.8916956887319947)

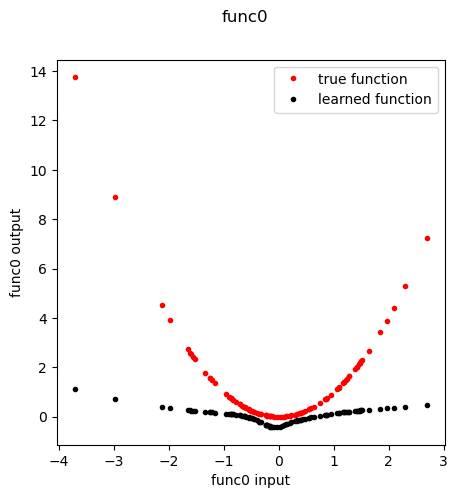

fn = 'func0'

f,axes = plt.subplots(1,1, figsize=(5,5), sharey=True)
plt.suptitle( fn )

func, meta = extract_entity_function(node=fn, model=model, data=data, layer=0)
n_inputs = func.lin_in.weight.data.shape[1]
inp = torch.randn(100, n_inputs)
out = func(inp)

if fn in special_functions:
    out_true = [special_functions[fn](np.array(x)) for x in inp]
else:
    out_true = [x for x in inp]

plt.plot(inp, out_true, 'r.', label='true function')
plt.plot(inp.detach().cpu().numpy().ravel(), out.detach().cpu().numpy().ravel(), 'k.', label='learned function')

plt.xlabel(f'{fn} input')
plt.ylabel(f'{fn} output')
plt.legend()
plt.show()

/tmp/ipykernel_4829/1489212564.py:12: DeprecationWarning: __array__ implementation doesn't accept a copy keyword, so passing copy=False failed. __array__ must implement 'dtype' and 'copy' keyword arguments. To learn more, see the migration guide https://numpy.org/devdocs/numpy_2_0_migration_guide.html#adapting-to-changes-in-the-copy-keyword
  out_true = [special_functions[fn](np.array(x)) for x in inp]

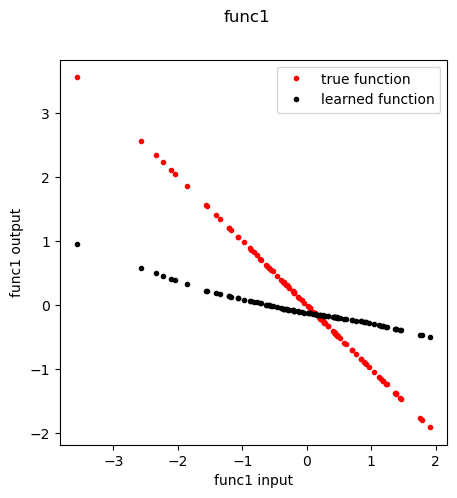

fn = 'func1'

f,axes = plt.subplots(1,1, figsize=(5,5), sharey=True)
plt.suptitle( fn )

func, meta = extract_entity_function(node=fn, model=model, data=data, layer=0)
n_inputs = func.lin_in.weight.data.shape[1]
inp = torch.randn(100, n_inputs)
out = func(inp)

if fn in special_functions:
    out_true = [special_functions[fn](np.array(x)) for x in inp]
else:
    out_true = [x for x in inp]

plt.plot(inp, out_true, 'r.', label='true function')
plt.plot(inp.detach().cpu().numpy().ravel(), out.detach().cpu().numpy().ravel(), 'k.', label='learned function')

plt.xlabel(f'{fn} input')
plt.ylabel(f'{fn} output')
plt.legend()
plt.show()

/tmp/ipykernel_4829/591615005.py:12: DeprecationWarning: __array__ implementation doesn't accept a copy keyword, so passing copy=False failed. __array__ must implement 'dtype' and 'copy' keyword arguments. To learn more, see the migration guide https://numpy.org/devdocs/numpy_2_0_migration_guide.html#adapting-to-changes-in-the-copy-keyword
  out_true = [special_functions[fn](np.array(x)) for x in inp]

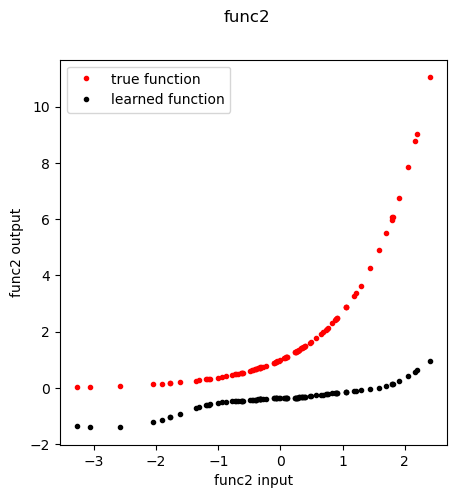

fn = 'func2'

f,axes = plt.subplots(1,1, figsize=(5,5), sharey=True)
plt.suptitle( fn )

func, meta = extract_entity_function(node=fn, model=model, data=data, layer=0)
n_inputs = func.lin_in.weight.data.shape[1]
inp = torch.randn(100, n_inputs)
out = func(inp)

if fn in special_functions:
    out_true = [special_functions[fn](np.array(x)) for x in inp]
else:
    out_true = [x for x in inp]

plt.plot(inp, out_true, 'r.', label='true function')
plt.plot(inp.detach().cpu().numpy().ravel(), out.detach().cpu().numpy().ravel(), 'k.', label='learned function')

plt.xlabel(f'{fn} input')
plt.ylabel(f'{fn} output')
plt.legend()
plt.show()

/tmp/ipykernel_4829/417286389.py:12: DeprecationWarning: __array__ implementation doesn't accept a copy keyword, so passing copy=False failed. __array__ must implement 'dtype' and 'copy' keyword arguments. To learn more, see the migration guide https://numpy.org/devdocs/numpy_2_0_migration_guide.html#adapting-to-changes-in-the-copy-keyword
  out_true = [special_functions[fn](np.array(x)) for x in inp]
